REF.9780ETH Compact SAT IF to IF Headend Ethernet

REF.9780ETH Compact SAT IF to IF Headend Ethernet

LOG IN TO SEE PRICES
Taxes included. Shipping calculated at checkout.

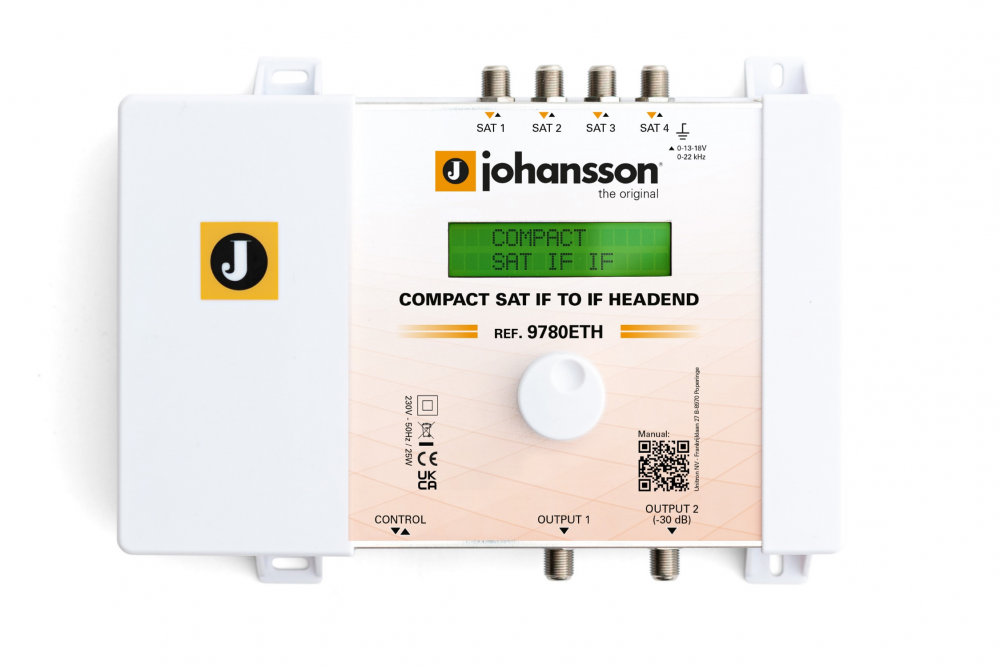

9780ETH Compact SAT IF to IF Headend Ethernet

Compact SAT IF to IF Headend: 4 inputs with Cloud Access




The 9780ETH is the new generation convertor for satellite signals to be used in MDU’s. The compact plug-and-play module has a straightforward and easy configuration. Perfect for equalizing and optimizing satellite transponders as input for your optical headend.

uCloud is UnitronGroup’s centralized remote management tool. Use uCloud to access and monitor your Johansson multimedia installations.
Configure online: www.ucloudserver.com

  • Multi-functional satellite IF-IF Headend: convertor, stacker, equaliser, optimizer.
  • Ethernet port for remote access
  • Up to 32 DVB-S/S2 transponders
  • 4 satellite inputs (Quattro/Quad/Wideband LNB)
  • Realtime AGC on all individual transponders
  • Read-out of input level strength: no need for field strength meter
  • 110 dBμV (output level)
  • Auto-tuning functionality
  • Can be used in Fiber Optic Systems with up to 128 passive splits

HERE'S WHAT INSTALLERS OF THE COMPACT SATELLITE CONVERTOR SAY: it truly is an innovative product with 5 big advantages:

  • The most cost-efficient satellite convertor solution on the market
  • Very easy and fast installation, without the need for a field strength meter
  • Extremely sharp filters
  • Perfect for equalizing and optimizing satellite transponders as input for a fiber headend
  • Excellent quality of the output signal, the 9780ETH optimises the incoming satellite signal to assure supreme video quality on the end-users' TV-screens.



For specifications, manuals and more details, we refer to the Johansson Website:
https://www.johansson.be/en/products/compact-satellite-convertor
